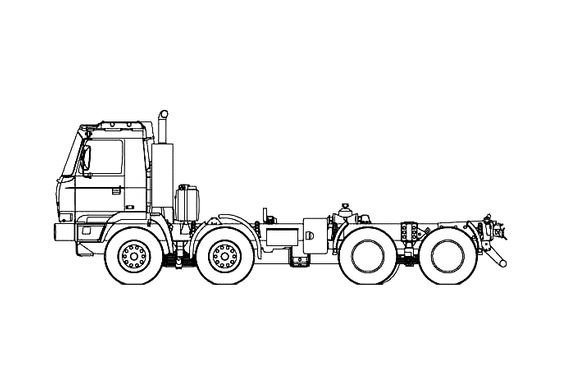

Blueprint Tatra T815 2X0R84 Truck 2007

Tatra T815 2X0R84 Truck 2007


  • jpg
left, top, back

Free


star 0 added to favorites
get_app 2 downloads

Specifications Tatra T815 2X0R84 Truck 2007 blueprint

The Tatra T815 2X0R84 Truck is a powerful and robust vehicle designed for heavy-duty hauling and off-road use. Built by Tatra, a well-known Czech manufacturer of heavy-duty vehicles, this truck was released in 2007 and is equipped with a 10.37 liter Euro 4, V8 engine with turbocharged, intercooled power. With a massive torque rating of up to 2430 Nm and a total power output of 315 kW, the Tatra T815 2X0R84 Truck is clearly designed for hauling. Its sturdy construction and heavy-duty frame are capable of resisting rough terrain and severe weather conditions. This truck also features full independent suspension, excellent throttle response, and a low RPM gear range for increased productivity. The Tatra T815 2X0R84 Truck also comes with a variety of additional features, including power steering, air conditioning, and adjustable suspension settings. With its superior power, durability, and stability, the Tatra T815 2X0R84 Truck is an excellent choice for anyone looking for a powerful and reliable truck capable of handling heavy loads.
